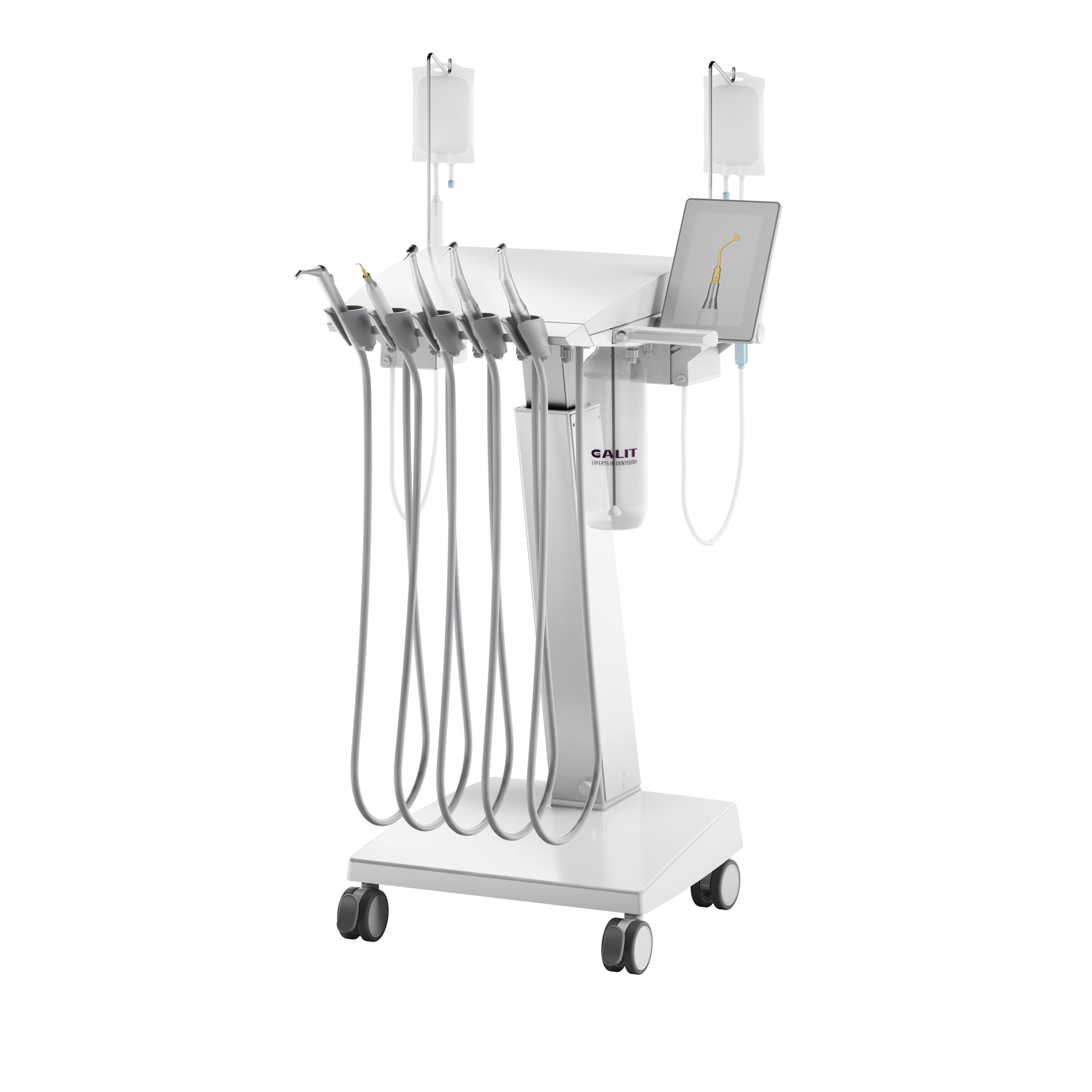

Gаllant Cart-5 Surgical

Modern technologies in a compact and mobile CART surgical.

Technical characteristics

Supply voltage 220 В / 50 Hz
Water supply network pressure 3-4 kg/cm²
Water consumption up to 10 l/min*
Compressed air network pressure 5,5-8 kg/сm2
Compressed air consumption 30-70 l/min*
Maximum current consumption 5 А
Average power consumption:
– doctor console 140 VА
– in standby mode 20 VА
– in operating mode 200 VА
Weight 30-40 kg*
Overall dimensions 615х605х870 mm

Manufacturer :
Basic version:

•  MINIMATE 3 way syringe;
•  scaler LED by light PB-5L W&H;
•  two EM 12L W&H micromotors with LED light (100-40000rpm);
•  turbine pneumatic line with light;
•  W&H display for instruments control (power, light, cooling, programming of instruments parameters);
   W&H multifunctional foot control.
•  physiodispenser holder;
•  W&H multifunctional foot control;
•  doctor console with lower delivery of hoses.

Doctor console with lower delivery of hoses:

wheel frame with antistatic wheels and devices to prevent damage to the walls;
unit for air preparation, power unit that are built in column of CART;
distilled water system (2 l.) switchable with city water;
table with silicone mat;
